Special Purpose Machines for Medical Industry

Body Assembly Machine (m/c code = FAT/BAM)

Body Assembly Machine This machine assembled the three parts of i.v.cannula ( wing housing, Teflon holder & cup formed Teflon) with equal length cutting of Teflon, so that we will get equal length tip formed pieces on tip forming machine. Loading & unloading of components will be done manually. Machine is doulble track with 2 sations on one m/c (with facility to run all gauges). Machine with table is compeletly made of s.s. 304 material.

Technical Specification:

  • Loading/unloading of component = manually
  • Manpower required = 2 persons
  • Teflon length cutting accuracy = +- 0.2mm
  • Production rate = 1200~ 1400 Pcs/hour (Depends on the worker speed also).
  • Table size = 800(l)* 800(w) * 700(h) MM.
  • Pneumatic used = FESTO/SMC make
  • PLC used = OMRON make Zen.
  • Operating voltage = 220VAC

Other Information:

  • Pay Mode Terms: L/C (Letter of Credit)
  • Delivery Time: 10~12 weeks
Send Query If you need any further details.
Email: info@forbesautomation.co.in | Phone (24x7): +91 9873 171 057 / +91 9811 171 056

Needle Fixing Machine (m/c code = FAT/NFM)

Needle Fixing Machine This m/c assembled the two parts of i.v.cannula (Needle and Needle hub). Needles will be filled in magazine and needle hub is loaded manually. Loading & unloading of component will be done manually. Machine is single track with facility to run all gauges (14 to 26 gauge). Machine with table is completely made of S.S. 304 material.

Technical Specification:

  • Loading/unloading of component = manually
  • Manpower required = 1 persons
  • Teflon length cutting accuracy = +- 0.2mm
  • Production rate = 1200~ 1400 Pcs/hour (Depends on the worker speed also).
  • Table size = 800(l)* 800(w) * 700(h) MM.
  • Pneumatic used = FESTO/SMC make
  • PLC used = OMRON make Zen.
  • Operating voltage = 220VAC

Other Information:

  • Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
  • Delivery Time: 8~10 weeks
  • Packaging Detail: As per customer requirement.
  • Dispatch From: Gurgaon
  • For Overseas: Mumbai Por
Send Query If you need any further details.
Email: info@forbesautomation.co.in | Phone (24x7): +91 9873 171 057 / +91 9811 171 056

Tip Forming Machine (m/c code = FAT/TFM)

Tip Forming Machine This machine is used to shape to the tip of Teflon. This is the main part of cannule directly related to the penetration force. Mandrel & special carbide made die is used to give better shape. We provide carbide die as per customer requirement. Machine is double track with single station & provision to run all gauges (14 to 26 gauges). Machine with table is completely made of S.S. 304 material.

Technical Specification:

  • Loading/unloading of component = manually
  • Manpower required = 1 persons
  • Teflon length cutting accuracy = +- 0.2mm
  • Production rate = 1200~ 1400 Pcs/hour (Depends on the worker speed also).
  • Table size = 1000(l)* 800(w) * 700(h) mm.
  • Controller used = Interfacing card with display or MMI with OMRON make Zen.
  • Pneumatic used = FESTO/SMC make
  • Operating voltage = 220VAC
  • Cold air gun = EXAIR (USA make)
  • Profile projector for tip inspection = Radical make
  • Induction Heating Generator 15KVA = Taiwan make

Other Information:

  • Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
  • Delivery Time: 8~10 weeks
  • Packaging Detail: As per requirement of client, packing cost, insurance, other taxes extra.
  • Dispatch From: Delhi
  • For Overseas: Mumbai Por
Send Query If you need any further details.
Email: info@forbesautomation.co.in | Phone (24x7): +91 9873 171 057 / +91 9811 171 056

Automatic Silicon Tube Cutting Machine (m/c code = FAT/STC)

This machine cuts the silicon tube to required length. The machine speed is motorized with mechanical motions. Machine is very simple & easy to operate. There is no regular operator required to operate the machine. Machine is table top with completely made of S.S. 304 material.

Technical Specification:

  • Loading/unloading = one time loading for one roll & unloading automatic.
  • Manpower required = 1 person only at the time of roll loading
  • Production rate = 4000 ~ 4500 Pcs/ Hour
  • Cutting Length = As per Clients requirements, otherwise 9 mm ± 0.2mm.
  • Controller = variable speed geared motor.
  • Table size = 400(l) x 500(w) x 400(h).

Other Information:

  • Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
  • Delivery Time: 8~10 weeks
  • Packaging Detail: As per requirement of client, packing cost, insurance, other taxes extra.
  • Dispatch From: Delhi
  • For Overseas: Mumbai Por
Send Query If you need any further details.
Email: info@forbesautomation.co.in | Phone (24x7): +91 9873 171 057 / +91 9811 171 056

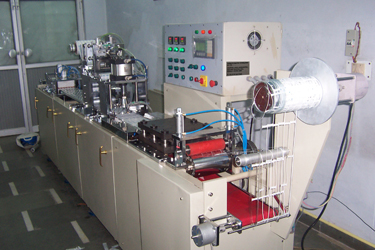

Rigid/soft Blister Packing Machines (m/c code = FAT/BPM)

Rigid/soft Blister Packing Machines This machine is used for packing the finished products. We are making specially for I.V. canulle & other disposable products packing. Our machine is very fast & sophisticated in working. We use servo drive to operate the machine.
This machine can be used widely in following industries.

  • Medical disposable industry
  • Food industry
  • Confectionery industry
  • Engineering industry
  • Pharmaceutical industry
  • Packaging industry

Technical Specification:

  • No. of track = 6nos.
  • Loading of component = Manually
  • Unloading of packed component = Automatic
  • PVC Film width = 185mm
  • Production rate = 4000 ~ 5000 PCS/Hour
  • Machine size = 5500(l) x 850(w) x 1500(h) mm.
  • Pneumatic used = FESTO/SMC Make
  • Operating Voltage = 220VAC
  • PLC used = OMRON make PLC (60i/o’s)
  • Servo motor = Panasonic make
  • Display = Omron make
  • Cutting type = Tandom Cutting

Other Information:

  • Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
  • Delivery Time: 8~10 weeks
  • Packaging Detail: As per requirement of client, packing cost, insurance, other taxes extra.
  • Dispatch From: Delhi
  • For Overseas: Mumbai Por
Send Query If you need any further details.
Email: info@forbesautomation.co.in | Phone (24x7): +91 9873 171 057 / +91 9811 171 056

Fully Automatic Cup Forming Machine (m/c code = FAT/CFM)

Fully Automatic Cup Forming Machine This machine is used to flair the cup shape of Teflon so that Teflon will be assembled with slip ring & body easily. The Machine is dedicated for single gauge on one table. We prefer one station on one table so that vibration of one m/c will not be transferred to other m/c. machine will be 6 track made of en-31 material with table of S.S.304 material.

Technical Specification:

  • Loading of component = manually one time for approx. 3000pcs.
  • Unloading of component = Automatic collection in bin
  • No. of track = 6nos.
  • Manpower required = 1 person can operate 3~4 machines at a time.
  • Production rate = 2200~ 3000 PCS/hour (Depends on the gauge).
  • Table size = 800(l)* 700(w) * 700(h) mm.
  • Pneumatic used = FESTO/SMC make
  • PLC used = OMRON/ Mitsubishi make PLC.
  • Display = MMI delta make
  • Operating voltage = 220VAC

Other Information:

  • Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
  • Delivery Time: 12~14 weeks
  • Packaging Detail: As per requirement of client, packing cost, insurance, other taxes extra.
  • Dispatch From: Delhi
  • For Overseas: Mumbai Por
Send Query If you need any further details.
Email: info@forbesautomation.co.in | Phone (24x7): +91 9873 171 057 / +91 9811 171 056

Automatic Lure Lock & Flash Back Chamber Assembly Machine (m/c code = FAT/LFAM)

Automatic Lure Lock & Flash Back Chamber Assembly Machine This Machine is completely automatic used to assemble Lure Lock & Flash Back Chamber. This machine has 2 tracks / 4 tracks as requirement of the customer. We use bowl feeder & pin feeder to feed the components. Parts of the machine will be made of en-31 material with hard chrome plating & m/c base will be made of S.S. 304 material.

Technical Specification:

  • Loading of component = Through Bowl feeder
  • Unloading of component = Automatic
  • No. of tracks = 2nos. /4 nos. (As per customer requirement)
  • Manpower required = 1 person for loading of component in bowl feeder.
  • Production rate = 4500pcs/hr. ~9000pcs. /hr. (depend upon no. of tracks)
  • Table size = 800(l)* 700(w) * 700(h) mm.
  • Table size = 800(l) x1200(w) x750(h)
  • Needle length accuracy = +_ 0.1mm
  • Orientation accuracy = 95 ~98% with in +_1 degree
  • Pneumatic used = FESTO/SMC make
  • PLC used = OMRON/ Mitsubishi make PLC.
  • Display = MMI delta make
  • Operating voltage = 220vac
  • Motor used = 25 watt ORIENTAL make geared motor with drive to control the speed.

Other Information:

  • Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
  • Delivery Time: 12~14 weeks
  • Packaging Detail: As per requirement of client, packing cost, insurance, other taxes extra.
  • Dispatch From: Delhi
  • For Overseas: Mumbai Por
Send Query If you need any further details.
Email: info@forbesautomation.co.in | Phone (24x7): +91 9873 171 057 / +91 9811 171 056

Automatic Needle Assembly Machine (m/c code = FAT/ANAM)

Fully Automatic Needle Assembly Machinee This is very high precise m/c to assembled the needle with needle hub Loading of needle & needle hub will be done automatically Assembled component will be unloaded on stands & further stand s will move on linear conveyor. In this m/c Needle length & bevel orientation will be +-0.01% accuracy Which reduces the operator time on final inspection.

Technical Specification:

  • Loading of component = Through magazine & bowl feeder
  • Unloading of component = Automatic on stands
  • Manpower required = 1 person can handle 2~3 m/CS at a time.
  • Production rate = 1300~1500 PCS/hr.
  • Table size = 1000(l)x1200(w)x750(h)
  • Pneumatic used = FESTO/SMC make
  • PLC used = OMRON/ Mitsubishi make PLC.
  • Display = HMI delta/OMRON make
  • Operating voltage = 220vac

Other Information:

  • Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
  • Delivery Time: 14~16 weeks
  • Packaging Detail: As per requirement of client, packing cost, insurance, other taxes extra.
  • Dispatch From: Delhi
